Description

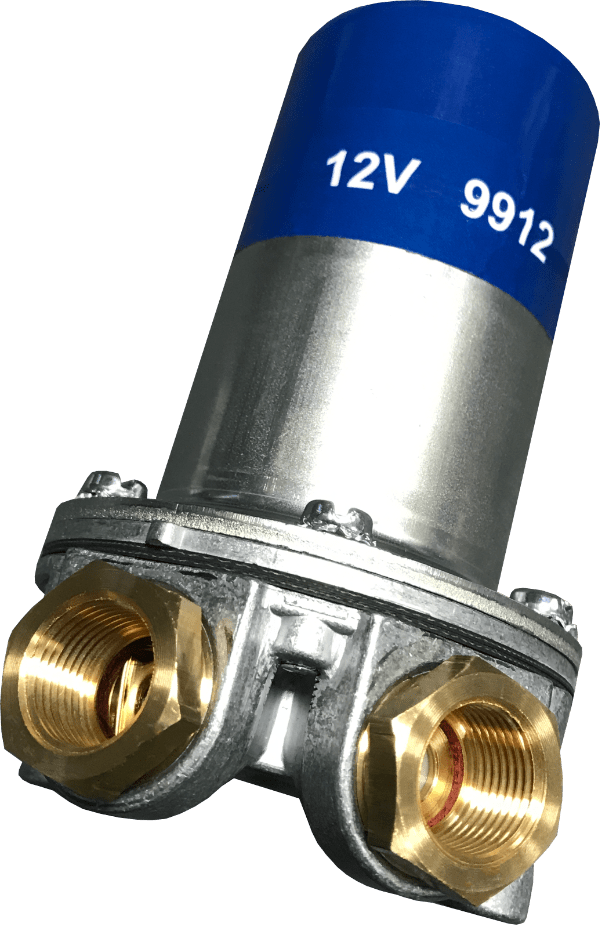

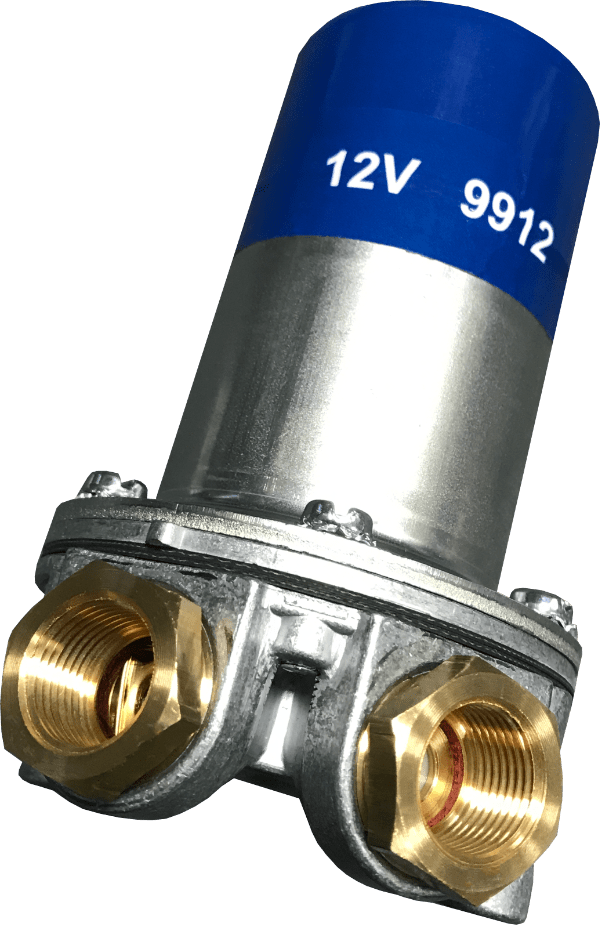

Hardi Fuel pump 9912
Suitable for:
Jaguar Mk 2 2.4 1961-69
Jaguar Mk 2 3.4 1961-69
Jaguar Mk 2 3.8 1961-69
Jaguar Mk 10 4.2 1963-68
Jaguar 420 4.2 1963-68
Jaguar S-Type 3.4, 3.8 1963-68
Jaguar E Type 4.2 1964-71
Jaguar XJ6 2.8 1968-73
Jaguar XJ6 4.2 1968-74
Daimler Sovereign 2.8 1969-73
Daimler Sovereign 4.2 1966-74
Daimler 250 (VB) 1962-69
- independent of the engine
- easy to assemble
- self-priming
- cold resistant to -40°C
- heat resistant up to +80°C
- Gasoline unleaded, diesel, methanol and ethanol containing fuels eligible
- Flow rate of the pump adjusts to the consumption

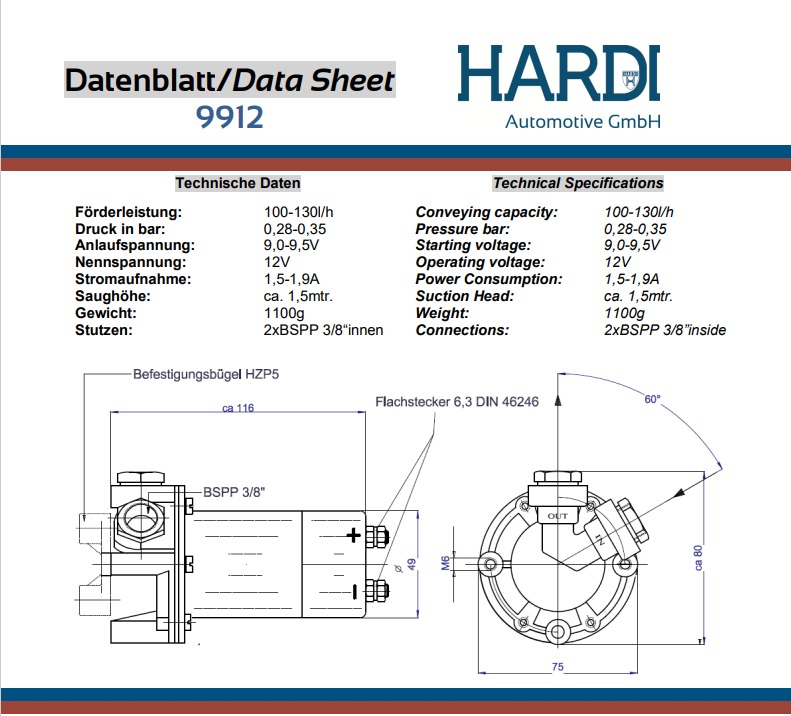

SPECIFICATIONS
Feeding capacity: 100-130l/h
pressure in bar: 0,28-0,35
starting voltage: 8,5-9,5V
nominal voltage: 12V
current consumption: 1,5-1,9A
suction height: <1,5mtr.
weight: 980g
nozzle: 2 x BSPP 3/8“ inside
suitable for engines over 100hp
The electrical HARDI Fuel Pump is a diaphragm pump. Opposed to mechanical fuel pumps it has its own propulsion (an electric motor or a solenoid coil), which ensures a smooth functioning independent of the engine.
All HARDI-Pumps have a special control system that enables the adaption of the pumping capacity to the consumption of the engine. This means, it will pump fast at high consumption, slow or not at all at low consumption and therefore a great deal of energy is saved (flexible stroke frequency).
