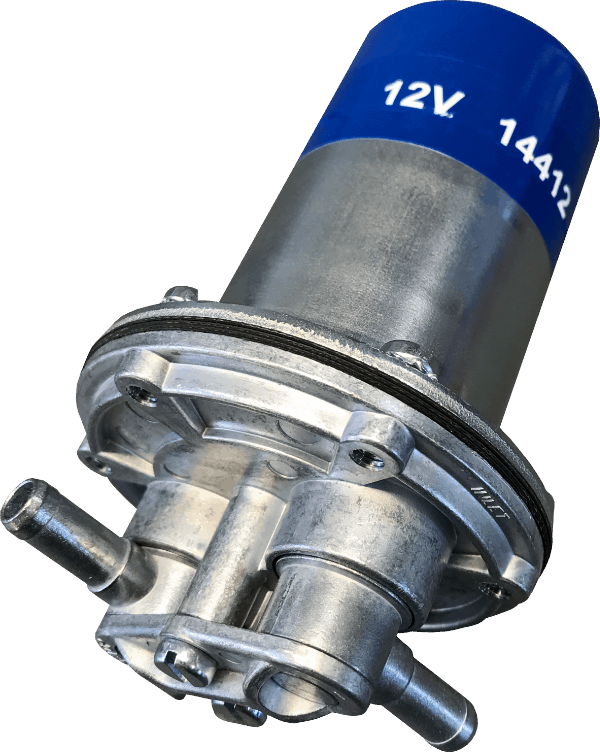

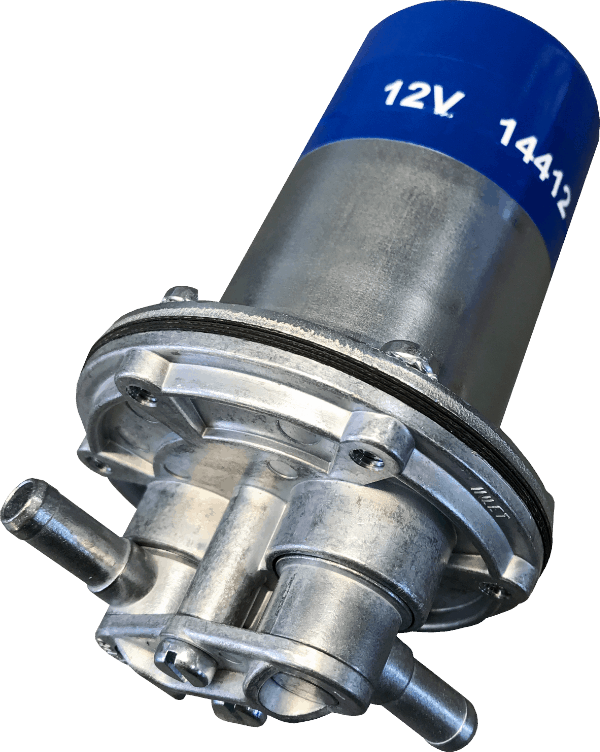

The electrical HARDI Fuel Pump is a diaphragm pump. Opposed to mechanical fuel pumps it has its own propulsion (an electric motor or a solenoid coil), which ensures a smooth functioning independent of the engine.
All HARDI-Pumps have a special control system that enables the adaption of the pumping capacity to the consumption of the engine. This means, it will pump fast at high consumption, slow or not at all at low consumption and therefore a great deal of energy is saved (flexible stroke frequency).

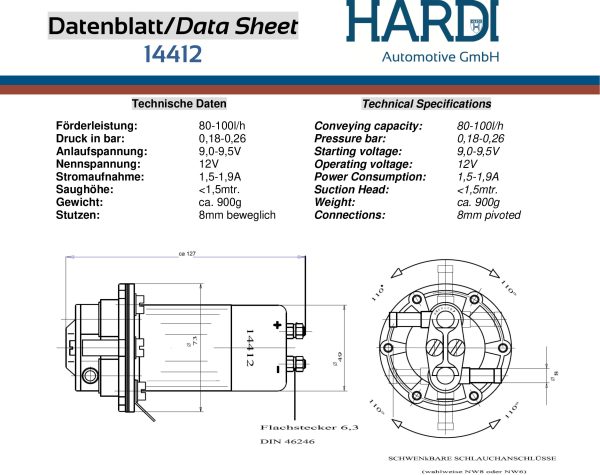

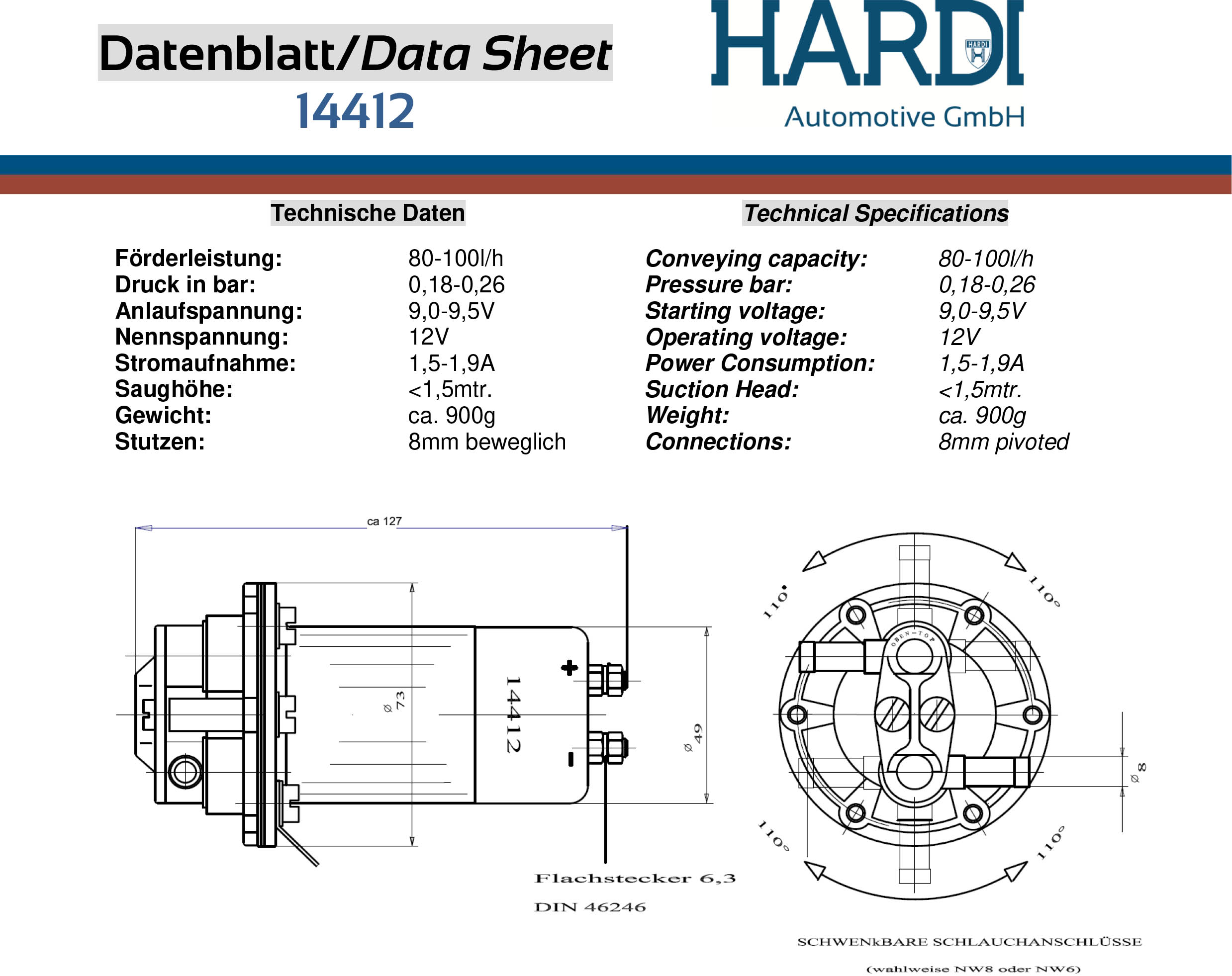

Feeding capacity: 80-100l/h
pressure in bar: 0,18-0,26
starting voltage: 9,0-9,5V
nominal voltage: 12V
current consumption: 1,5-1,9A
suction height: < 1,5m.
nozzle: 8mm movable
suitable for engines up to 100hp
- independent of the engine
- easy to assemble
- cold resistant to -40°C
- heat resistant up to +80°C
- Gasoline unleaded, diesel, methanol and ethanol containing fuels eligible
- Flow rate of the pump adjusts to the consumption
For safety reasons, we generally recommend the use of a safety shutdown during installation!
Supplied with: Clamp with rubber, screw & nut; operation manual
