123TUNE+-8-R-V-ROLLSROYCE

619.35

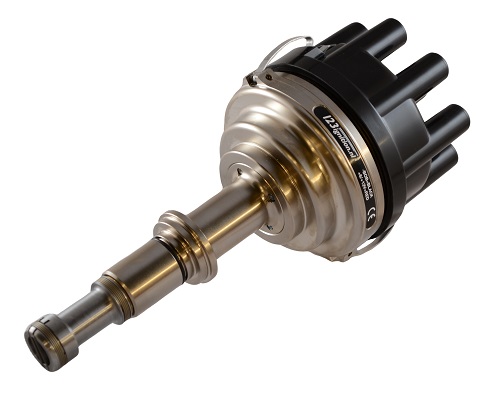

The wireless programmable 123TUNE+-8-R-V-ROLLSROYCE replaces 8 cylinder Rolls Royce distributors.

Description

The wireless programmable 123TUNE+-8-R-V-ROLLSROYCE replaces 8 cylinder Rolls Royce distributors.

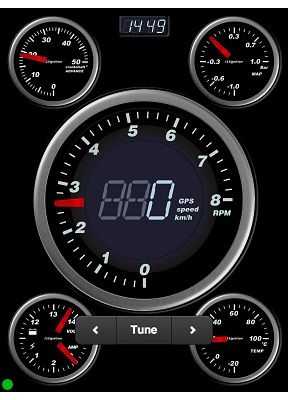

123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

SPECIFICATIONS
cylinders: 8
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: one programmable advance curve
Programmable: By iOS or Android app via Bluetooth 4.0
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off
wiring: red = +6V or +12V, black = ‘-‘ coil, blue = ground
App for IOS: 123Tune  (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ or newer
App for Android: 123Tune+  (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4.0 LE or higher

Additional information

Weight 1 kg
Make Model
Rolls Royce
