Description
123TUNE+-6-R-V-D

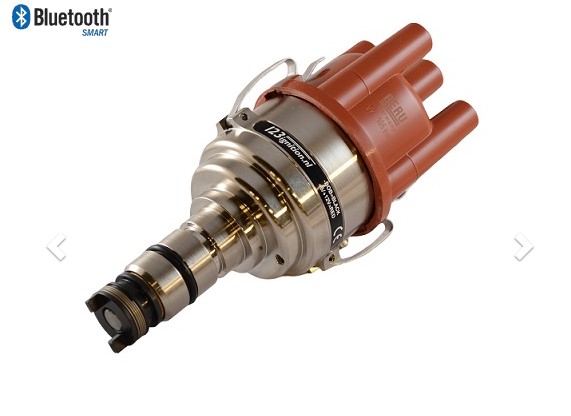

The wireless programmable 123TUNE+-6-R-V-D is especially designed for the Alfa-2600.

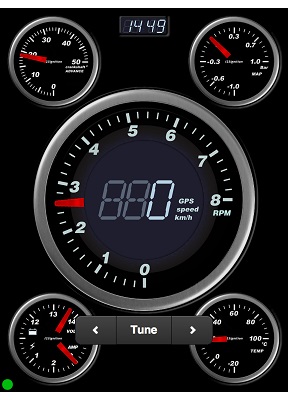

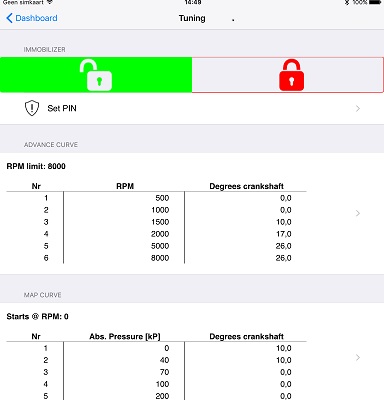

123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.
The mobile app is available in Android or IOS
| SPECIFICATIONS | |
|---|---|
| cylinders: | 6 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | vacuum advance or boost retard, max. 20 degrees crankshaft |
| max.advance: | 45 degr. crankshaft |
| curves: | one programmable advance curve |
| Programmable: | By iOS or Android app via Bluetooth 4.0 |
| Rev limiter: | Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off |

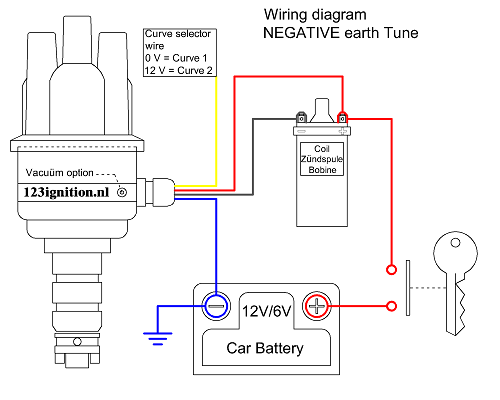

| wiring: | red = +6V or +12V, black = ‘-‘ coil, blue = ground |
| App for IOS: | 123Tune (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ or newer |
| App for Android: | 123Tune+ (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4.0 LE or higher |
