123TUNE+-4-R-V-LANCIA

381.68

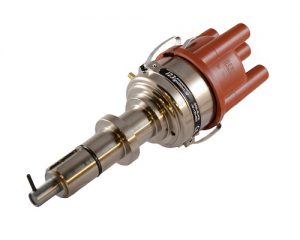

The wireless programmable 123\TUNE+-4-R-V-LANCIA is designed with the help of Lancia enthusiasts.

Categories: ,

Description

TUNE+-4-R-V-LANCIA

The wireless programmable 123\TUNE+-4-R-V-LANCIA is designed with the help of Lancia enthusiasts.

For the Fulvia this means, that the gearwheel from the original distributor needs to be replaced. (which is an easy job as everything is prepared by us)

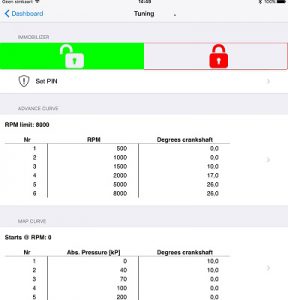

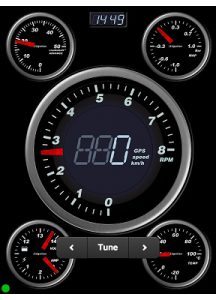

123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

123TUNE+-6-R-V-D
123TUNE+-6-R-V-D
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: one programmable advance curve
Programmable: By iOS or Android app via Bluetooth 4.0
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off
wiring: red = +6V or +12V, black = ‘-‘ coil, blue = ground
App for IOS: 123\Tune  (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ or newer
App for Android: 123\Tune+  (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4.0 LE or higher
123 ignitions pristine parts

123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.
