123Tune-4-R-V-G

393.89

The 123\TUNE-4-R-V-G replaces most 4 cyl. Lucas-distributors for engines in Great-British (hence ‘GB’) cars.

Description

The 123Tune-4-R-V-G

123 ignitions tune usb
123MERCEDES-4-R-V

The 123\TUNE-4-R-V-G replaces most 4 cyl. Lucas-distributors for engines in Great-British (hence ‘GB’) cars.

Please check if the distributor need a connection for a mechanical rev.counter, as a 123\TUNE-4-R-V-G does not offer this.

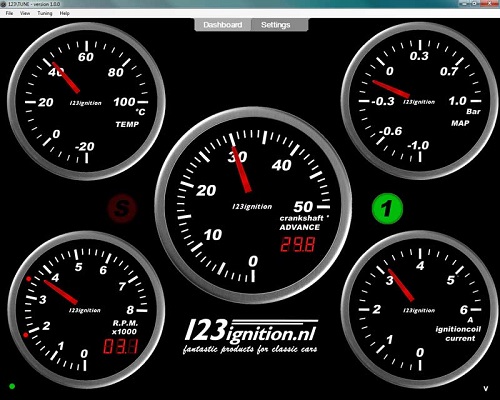

If you want to tune your engine, or you have an engine for which there is no standard distributor available….. And you are a Windows PC user, the 123\TUNE is the answer! By connecting it to a computer, you can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE. Handy, if you’re driving on two different fuels, like regular fuel with LPG or with Ethanol

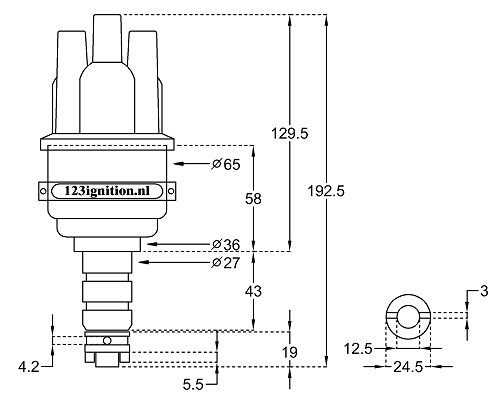

123 ignitons schematic pristine parts
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: Two programmable advance curves
Programmable: By Windows PC Software via mini USB cable
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off
wiring: red = +6V or +12V, black = ‘-‘ coil, blue = ground, yellow = curve selector
123 ignitions pristine parts

123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.

Additional information

Weight 1 kg

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Make Model
Aston Martin
Austin
Landrover
MG
Mini
Morgan
Rover
Triumph
