123TUNE-4-R-V-D

348.40

The USB programmable 123TUNE-4-R-V-D is designed for the Alfa 4 cylinder engines like: Giulia Nova, Spider & Bertone 2000, the Duetto and many others.

Description

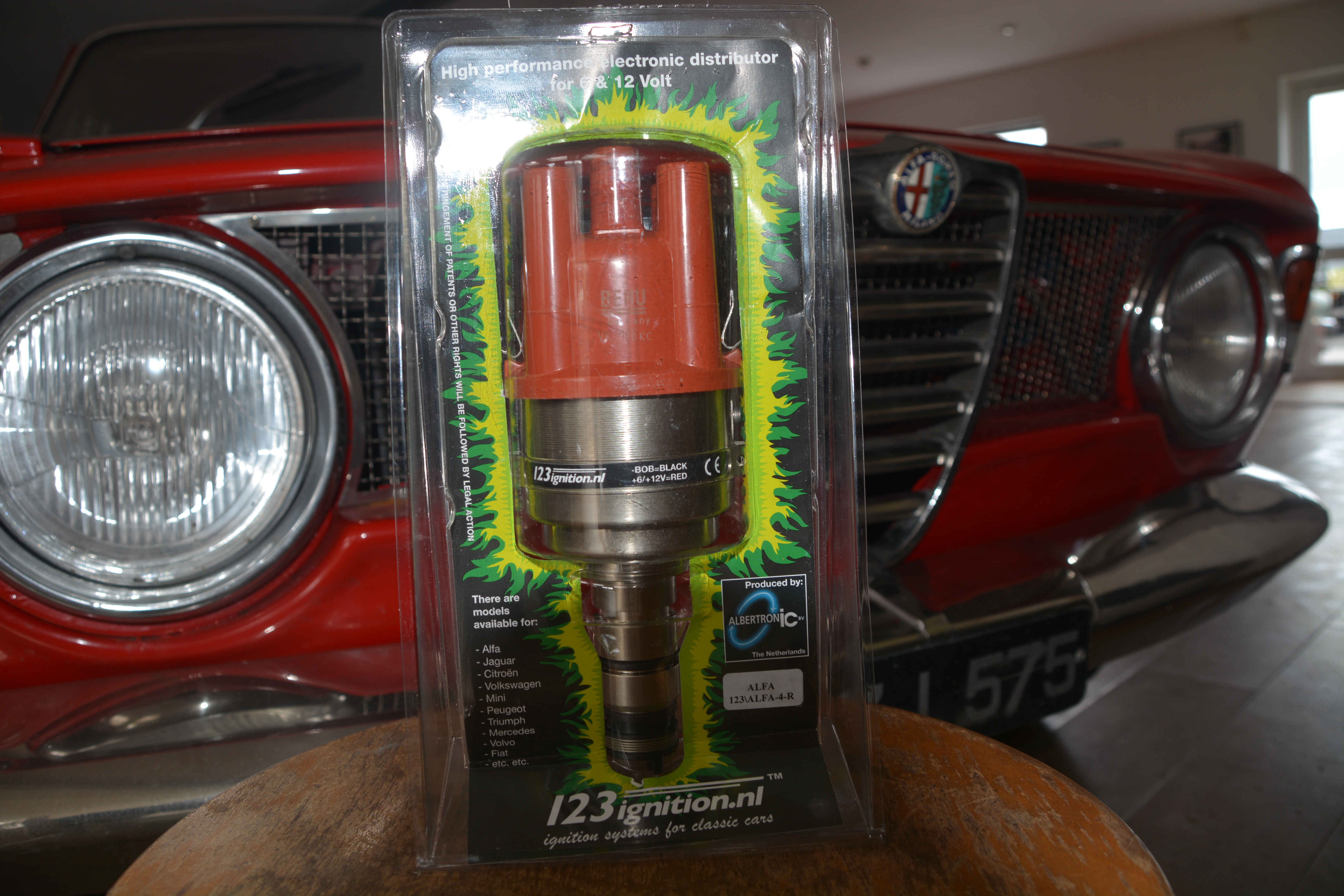

The 123Tune 4-R-V-D

The USB programmable 123TUNE-4-R-V-D is designed for the Alfa 4 cylinder engines like: Giulia Nova, Spider & Bertone 2000, the Duetto and many others.If you want to tune your engine, or you have an engine for which there is no standard distributor available….. And you are a Windows PC user, the 123TUNE is the answer! By connecting it to a computer, you can easily adapt the 123TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123TUNE. Handy, if you’re driving on two different fuels, like regular fuel with LPG or with Ethanol


tune alfa adjustable curves pristine classics

Adjustable curves through software



SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: Two programmable advance curves
Programmable: By Windows PC Software via mini USB cable
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off

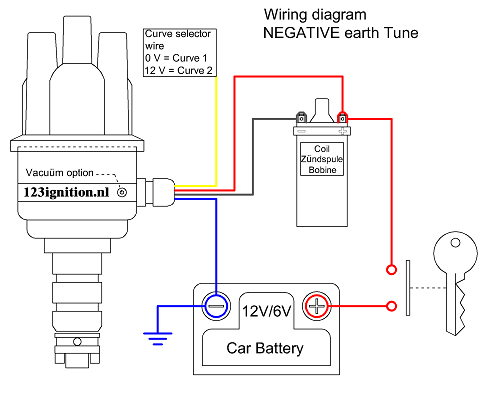

wiring: red = +6V or +12V, black = ‘-‘ coil, blue = ground, yellow = curve selector

The tuning utility

tune alfa ui pristine classics

Download the windows drivers here

Additional information

Weight 1 kg
