Description
Tune 4-R-V-BMW

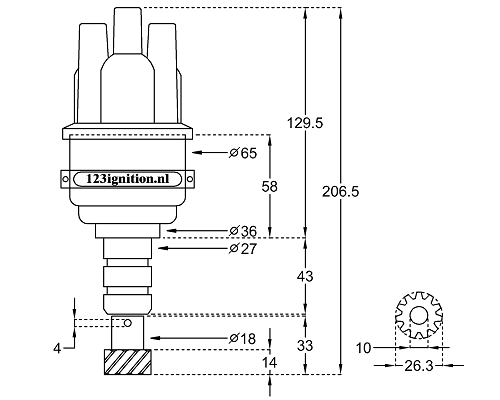

The 123\TUNE-4-R-V-BMW is designed for M10 engines, in the BMW :
-1600
-1602, 1602Ti
-1800, 1800Ti
-1802
-2000, 2000Ti, 2000Tii
-2002, 2002Ti, 2002Tii, 2002Turbo
– 316, 318, 518, 320, 520 (early types!!)
If you want to tune your engine, or you have an engine for which there is no standard distributor available….. And you are a Windows PC user, the 123\TUNE is the answer! By connecting it to a computer, you can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE. Handy, if you’re driving on two different fuels, like regular fuel with LPG or with Ethanol
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | vacuum advance or boost retard, max. 20 degrees crankshaft |
| max.advance: | 45 degr. crankshaft |

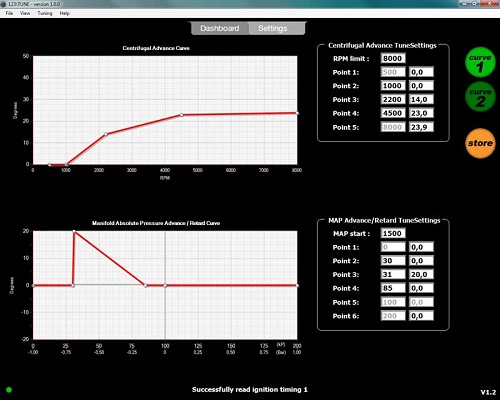

| curves: | Two programmable advance curves |
| Programmable: | By Windows PC Software via mini USB cable |
| Rev limiter: | Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off |
| wiring: | red = +6V or +12V, black = ‘-‘ coil, blue = ground, yellow = curve selector |
| latest software: | 123\TUNE version 2.3.1 (6 MB installer for Windows) |
123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.
