123TUNE+-4-R-V-BMW

413.42

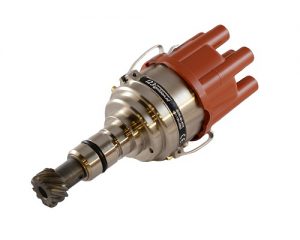

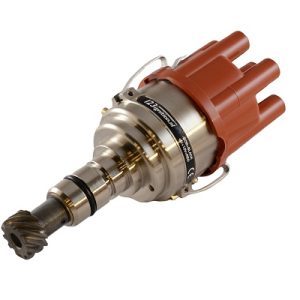

The 123\TUNE+-4-R-V-BMW is designed for M10 engines, in the BMW

Categories: , Tag:

Description

123TUNE+-4-R-V-BMW

The 123\TUNE+-4-R-V-BMW is designed for M10 engines, in the BMW :

-1600
-1602, 1602Ti
-1800, 1800Ti
-1802
-2000, 2000Ti, 2000Tii
-2002, 2002Ti, 2002Tii, 2002Turbo
– 316, 318, 518, 320, 520 (early types!!)

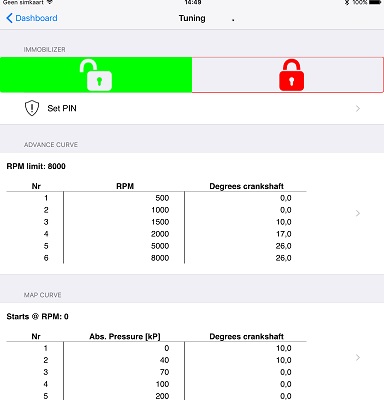

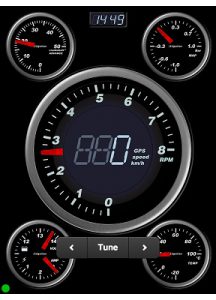

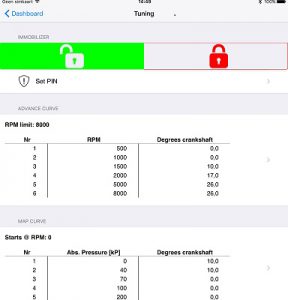

123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

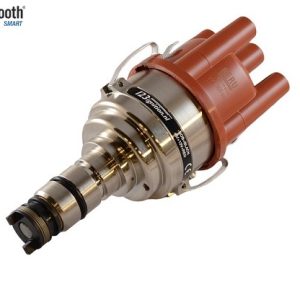

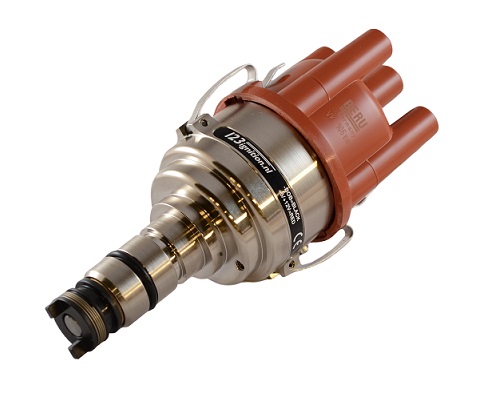

123 Tune + 4-R-V-D Alfa
123 Tune + 4-R-V-D Alfa
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: one programmable advance curve
Programmable: By iOS or Android app via Bluetooth 4.0
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off
wiring: red = +6V or +12V, black = ‘-‘ coil, blue = ground
App for IOS: 123\Tune  (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ or newer
App for Android: 123\Tune+  (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4.0 LE or higher
123 ignitions pristine parts

123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.
