Description
Tune 4-A-V-Kent

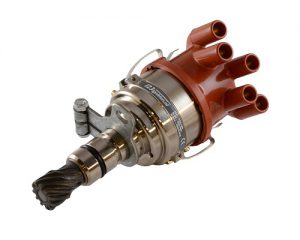

The USB programmable 123\TUNE-4-A-V-KENT is designed for the Ford Kent engines.
If you want to tune your engine, or you have an engine for which there is no standard distributor available….. And you are a Windows PC user, the 123\TUNE is the answer! By connecting it to a computer, you can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE. Handy, if you’re driving on two different fuels, like regular fuel with LPG or with Ethanol



SPECIFICATIONS | |
---|---|
cylinders: | 4 |
direction: | CW/CCW |
voltage: | 4,0-15,0 Volts |
range: | 500 – 8000 rpm |
temperature: | -30 to 100 Celsius |
coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
dwell: | constant current, fully autom. |
time-out: | after 1 second current is switched off |
spark-bal.: | better than 0,5 degr. crankshaft |
vacuum: | vacuum advance or boost retard, max. 20 degrees crankshaft |
max.advance: | 45 degr. crankshaft |
curves: | Two programmable advance curves |
Programmable: | By Windows PC Software via mini USB cable |
Rev limiter: | Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off |
wiring: | red = +6V or +12V, black = ‘-‘ coil, blue = ground, yellow = curve selector |
latest software: | 123\TUNE version 2.3.1 (6 MB installer for Windows) |

123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.
