Description

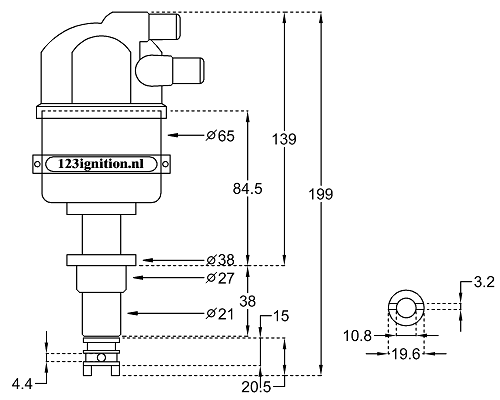

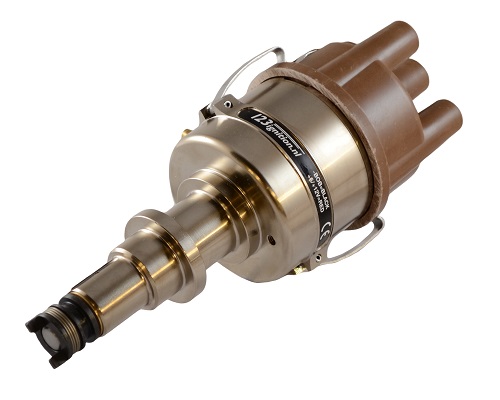

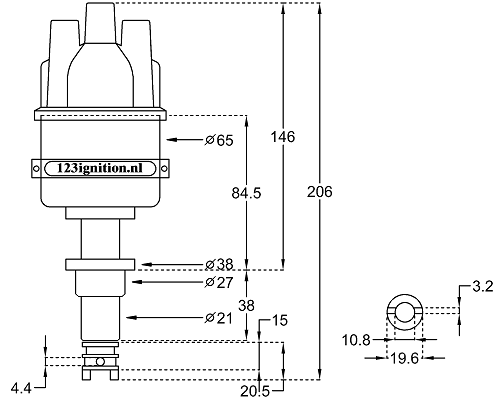

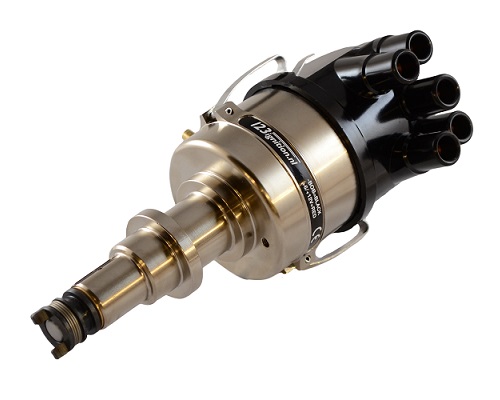

The 123RENAULT-4-R-V is a distributor, specifically targeted for the “Cleon”-engines as used in Renault 4, Renault 5, 4F4, 4F6, Renault Estafette and DAF55. It contains all the curves for carbureted-engines as originally specified by Renault.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | starts at 100 mmHg, ends at 10 degr. @ 300 mmHg |
| max.advance: | 45 degr. crankshaft |
| wiring: | red = +6V or +12V, black = ‘-‘ coil |
| advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
|---|---|---|---|---|---|---|---|---|
| curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
| 0 | 1100 | 4800 | 34,0 | 100 | 300 | 20,0 | R-222 & C33 | RENAULT-4 FOURGON MOTEUR 688 |
| 1 | 1300 | 5600 | 24,0 | 100 | 600 | 14,5 | R-280 & C52 | RENAULT-4 GTL MOTEUR 688 |
| 2 | 1200 | 5000 | 34,0 | 100 | 450 | 21,0 | R-244 & D61 | RENAULT-4 GTL MOTEUR 688 |
| 3 | 1000 | 4500 | 34,0 | 100 | 600 | 14,5 | R-268 & C52 | RENAULT-4 SAVANNE MOTEUR 708 |
| 4 | 1000 | 4900 | 18,0 | 100 | 300 | 10,0 | R-275 & C34, R-287 & C34 | RENAULT-5 MOT.:800-10 |
| 5 | 1000 | 4500 | 34,0 | 100 | 300 | 10,0 | R-268 & C34 | RENAULT-5 MOT.:689-10 |
| 6 | 1000 | 4600 | 36,0 | 100 | 300 | 10,0 | R-248 & C34 | RENAULT-5 MOT.:810-25 |
| 7 | 1000 | 4600 | 36,0 | 100 | 300 | 20,0 | R-248 & C33 | RENAULT-5 MOT.:810-26 |
| 8 | 1100 | 5000 | 30,0 | 100 | 450 | 21,0 | R-294 & D61 | RENAULT-5 MOT.:810-29 |
| 9 | 1000 | 5000 | 24,0 | 100 | 300 | 20,0 | R-308 & C33 | RENAULT-5 MOT.:1400cc |
| A | 0800 | 4300 | 28,0 | 100 | 300 | 10,0 | R-230 & C34 | RENAULT-5 ALPINE |
| B | 1000 | 4500 | 36,0 | 75 | 375 | 14,0 | BB BR110 | DAF-55 |
| C | 1000 | 3500 | 30,0 | 75 | 375 | 19,0 | B130 | DAF-55 |
| D | 1400 | 3500 | 36,0 | 100 | 300 | 20,0 | R-249 & C33 | RENAULT ESTAFETTE MOT.:810-01 |
| E | 1000 | 4000 | 22,0 | 100 | 300 | 11,0 | ZS & ZT | SAVANNE ESTAFETTE MOT.:671 |
