Description
The 123PORSCHE-4-R-V is designed for Porsche 912 / 914 / 356
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | starts at 100 mmHg, ends at 10 degr. @ 300 mmHg |
| max.advance: | 45 degr. crankshaft |

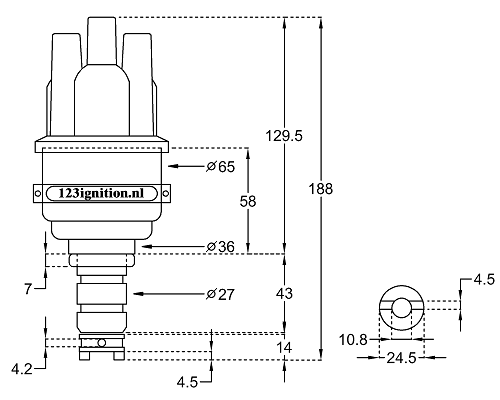

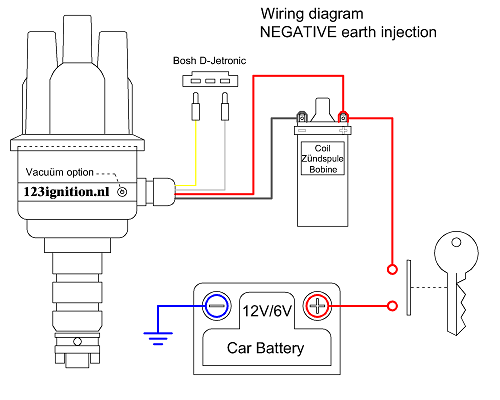

| wiring: | red = +6V or +12V, black = ‘-‘ coil |
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
|---|---|---|---|---|---|---|---|---|
| curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
| 0 | 0800 | 2600 | 22,0 | 100 | 200 | 12,0 | BOSCH 0 231 174 001 & 005 & 175 005 | Porsche 914 |
| 1 | 1000 | 2700 | 22,0 | 100 | 175 | 07,0 | BOSCH 0 231 174 007 & 009 | Porsche 914 |
| 2 | 1000 | 2700 | 22,0 | 100 | 200 | 12,0 | BOSCH 0 231 174 011 | Porsche 914 |
| 3 | 1000 | 3400 | 23,0 | 100 | 200 | 10,0 | BOSCH 0 231 168 009 & 176 048 | Porsche 914 |
| 4 | 1000 | 2700 | 22,0 | 100 | 200 | 12,0 | BOSCH 0 231 172 021 | Porsche 914 |
| 5 | 0800 | 3100 | 30,0 | 100 | 300 | 10,0 | BOSCH 0 231 129 022 | Porsche 912 |
| 6 | 0800 | 3100 | 30,0 | 100 | 300 | 10,0 | VE4BRS383 JV4BR9 VJ4BR18 VJR4BR18 | Porsche 356 |
| 7 | 0800 | 2600 | 22,0 | 100 | 200 | 12,0 | BOSCH 0 231 172 007 | VW 411E/412E |
| 8 | 1000 | 4200 | 22,0 | 100 | 200 | 10,0 | BOSCH 0 231 172 009 & 011 | VW1600E |
| 9 | 0800 | 2600 | 22,0 | – | – | 10,0* | BOSCH 0 231 174 001 & 005 & 175 005 | Porsche 914 |
| A | 1000 | 2700 | 22,0 | – | – | 10,0* | BOSCH 0 231 174 007 & 009 | Porsche 914 |
| B | 1000 | 2700 | 22,0 | – | – | 10,0* | BOSCH 0 231 174 011 | Porsche 914 |
| C | 1000 | 3400 | 23,0 | – | – | 12,0* | BOSCH 0 231 168 009 & 176 048 | Porsche 914 |
| D | 1000 | 2700 | 22,0 | – | – | 10,0* | BOSCH 0 231 172 021 | Porsche 914 |
| E | 0800 | 2600 | 22,0 | – | – | 10,0* | BOSCH 0 231 172 007 | VW 411E/412E |
| F | 1000 | 4200 | 22,0 | – | – | 10,0* | BOSCH 0 231 172 009 & 011 | VW1600E |
