Description

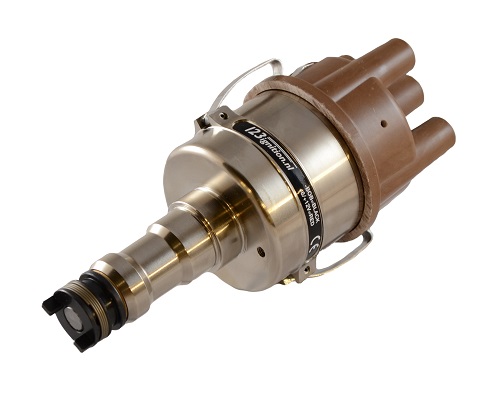

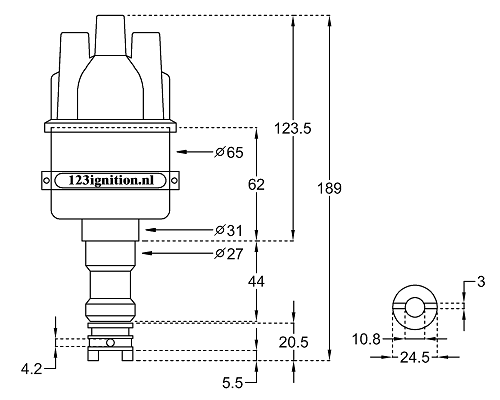

The 123PEUGEOT-4-R-V replaces the Ducellier M3, M12, XC1, M127, M59, M43, M75, M48, M36, M42, M50, M53, M77, M78, M95, M71, M86 & M130.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | starts at 100 mmHg, ends at 10 degr. @ 300 mmHg |
| max.advance: | 45 degr. crankshaft |
| wiring: | red = +6V or +12V, black = ‘-‘ coil |
| advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
|---|---|---|---|---|---|---|---|---|
| curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
| 0 | 1200 | 4500 | 20,0 | 100 | 300 | 10,0 | M127 | model: J9 XN1P |
| 1 | 1200 | 4600 | 36,0 | 100 | 300 | 15,0 | M59 | 204, 304 XK 1:7,6 |
| 2 | 1000 | 5300 | 24,0 | 100 | 300 | 10,0 | M43 | 204, 304 XK 1:8,8 |
| 3 | 1400 | 6000 | 31,0 | 100 | 300 | 10,0 | M75 | 204, 304 XL3S |
| 4 | 1100 | 4500 | 17,0 | 100 | 300 | 10,0 | M3 | 203 1300cc |
| 5 | 1000 | 4200 | 34,0 | 100 | 300 | 17,0 | XC1 | 404 XC1 (1960) |
| 6 | 1000 | 5000 | 29,0 | 100 | 300 | 10,0 | M48 | 404,504,505,XC5,XB5,XC6,XC7,XM7,XN1 |
| 7 | 1000 | 5500 | 21,0 | 100 | 300 | 9,0 | M36,M42,M50 | 404 XCKF1,XCKF2 |
| 8 | 0900 | 4400 | 26,0 | 100 | 300 | 9,0 | M53 | 504 TIXN2 |
| 9 | 1100 | 4500 | 23,0 | 100 | 300 | 9,0 | M77 | 504 XN2 |
| A | 1000 | 5000 | 26,0 | 100 | 300 | 10,0 | M78 | 504 XN1 |
| B | 1100 | 4500 | 26,0 | 150 | 300 | 10,0 | M95 | 504 XN2 |
| C | 1000 | 3700 | 37,0 | 100 | 300 | 10,0 | M71 | J7 XC7P,XM7P |
| D | 1000 | 5200 | 39,0 | 100 | 300 | 8,0 | M86 | J7 XC7P,XM7P |
| E | 1000 | 4500 | 28,0 | 100 | 300 | 16,0 | M12 | 403 1500cc |
| F | 1400 | 5000 | 26,0 | 100 | 300 | 20,0 | M130 | J5 XM7T,XN1T |
