Description

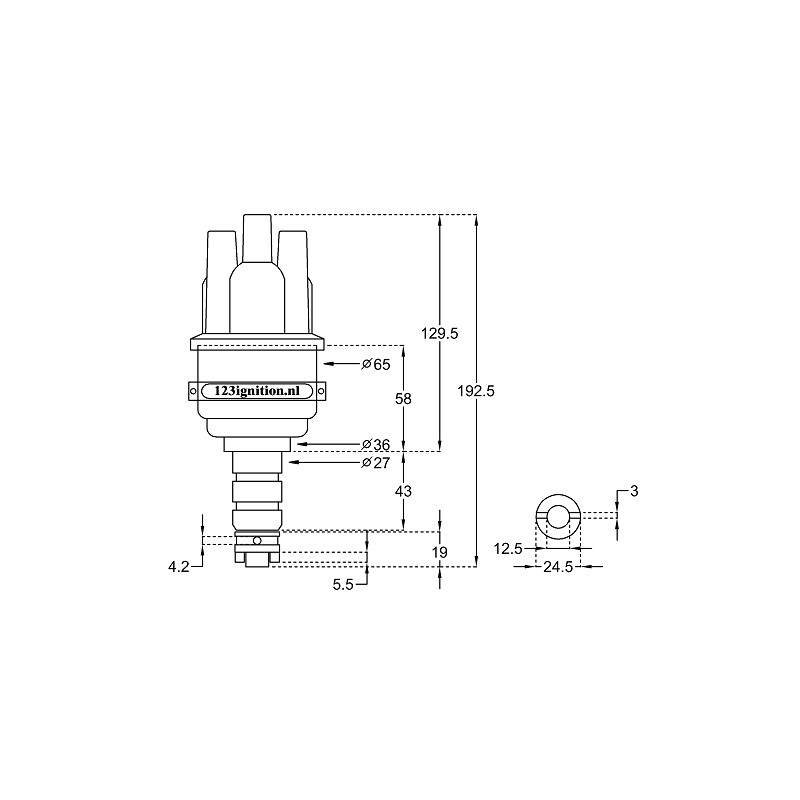

The 123MG-4-R-V is designed especially for the MGA and MGB.
All the advance-curves, that were ever specified for these cars, are integrated into this product.
For MGC see 123GB-6-R-VThe unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | starts at 100 mmHg, ends at 10 degr. @ 300 mmHg |
| max.advance: | 45 degr. crankshaft |
| wiring: | red = +6V or +12V, black = ‘-‘ coil |
| advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
|---|---|---|---|---|---|---|---|---|
| curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
| 0 | 0500 | 2200 | 28,0 | 100 | 300 | 18,0 | MG-A DM2/40510 | set static at -10 degrees, HC at -5 degr. |
| 1 | 0500 | 4400 | 24,0 | 100 | 300 | 16,0 | 40916 | 18GG (LC),18G,18GA,18GB,18GD |
| 2 | 0500 | 2200 | 20,0 | 130 | 330 | 20,0 | 40897,41155 | 18G,18GA,18GB,18GD,18GG(HC),18GF,18GH,18GJ |
| 3 | 1000 | 4600 | 20,0 | 100 | 300 | 10,0 | 41339 | 18GK |
| 4 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | 41370 | 18G584Z, 18G585Z |
| 5 | 1000 | 4300 | 33,0 | 100 | 300 | 10,0 | 41491 | 18V672Z, 18V673Z |
| 6 | 0700 | 2200 | 14,0 | 130 | 330 | 20,0 | 41288 | 18V581F-18V583F-18V581Y-18V583Y (HC) |
| 7 | 0700 | 4200 | 18,0 | 100 | 300 | 16,0 | 41290 | 18V581F-18V583F-18V581Y-18V583Y (LC) |
| 8 | 0700 | 2200 | 19,0 | 75 | 200 | 14,0 | 41032 | 18V (HC) |
| 9 | 1000 | 6000 | 27,0 | 100 | 300 | 16,0 | 41234,41391,41692 | 18V892AE, 18V779F, 18V780F, 18V893AE |
| A | 1000 | 5800 | 24,0 | 75 | 550 | 24,0 | 41610 | 18V846F-18V847F |
| B | 1000 | 5000 | 26,0 | 100 | 300 | 10,0 | 41599 | 18V797AE, 18V798AE |
| C | 1000 | 4400 | 22,0 | 100 | 300 | 10,0 | – | intended for ‘stage 2’ engines |
| D | 1000 | 4500 | 29,0 | 100 | 300 | 10,0 | 41600,41643 | 18V801AE, 18V802AE |
| E | 1000 | 4500 | 29,0 | 100 | 300 | 10,0 | 41693 | 18V883AE, 18V884AE |
| F | 1000 | 4500 | 29,0 | 100 | 300 | 10,0 | 41695 | 18V890AE, 18V891AE |
