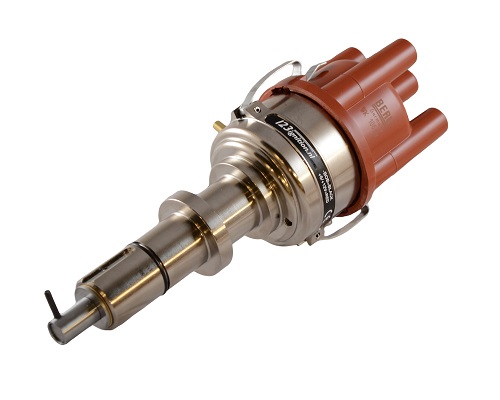

123LANCIA-4-R

262.68

The 123\LANCIA-4-R is designed with the help of Lancia enthusiasts.

Categories: , Tag:

Description

123LANCIA-4-R

The 123\LANCIA-4-R is designed with the help of Lancia enthusiasts. As these cars are becoming quite rare, we have chosen to introduce a product that offers all the necessary advance-curves, but that may need some fiddling before it can be mounted.
For the Fulvia this means, that the gearwheel from the original distributor needs to be replaced. (which is an easy job as everything is prepared by us)

The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.

Curve table data

123\LANCIA-4-R

advance starts max. advance vac. adv. starts max. vac. adv.
curve [rpm crankshaft] [rpm/ degr. crankshaft] [mmHg] [mmHg/ degr.] replaces remark
0 1200 4000 24,0 100 300 10,0 MARELLI S105B FULVIA 818.000
1 1200 4000 24,0 100 300 10,0 MARELLI S105B FULVIA 818.100
2 1000 3200 15,0 100 300 10,0 MARELLI S105C FULVIA 818.100/130/140/342/303/302/282
3 0800 5400 20,0 100 300 10,0 MARELLI S139A FULVIA 818.540 & var.1016 mot.
4 0600 4000 26,0 100 300 10,0 MARELLI FLAVIA 815.000/200 315.000
5 0600 3700 24,0 100 300 10,0 MARELLI FLAVIA 815.100/300/500
6 0500 5000 24,0 100 300 10,0 MARELLI FLAVIA 815.400
7 1200 4000 24,0 100 300 10,0 MARELLI S105B FULVIA 818.000
8 0500 5000 26,0 100 300 10,0 MARELLI S102D 820.000/200
9 1200 4000 24,0 100 300 10,0 MARELLI S102D 820.000/200
A 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
B 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
C 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
D 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
E 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
F 0500 4000 23,0 100 300 10,0 MARELLI S102B FULVIA
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: starts at 100 mmHg, ends at 10 degr. @ 300 mmHg
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = ‘-‘ coil
123 ignitions pristine parts

123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.
