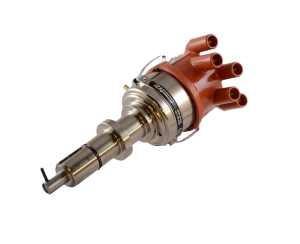

The 123\LANCIA-4-A-V is designed with the help of Lancia enthusiasts. As these cars are becoming quite rare, we have chosen to introduce a product that offers all the necessary advance-curves, but that may need some fiddling before it can be mounted.
For the Fulvia this means, that the gearwheel from the original distributor needs to be replaced. (which is an easy job as everything is prepared by us)
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
|advance starts||max. advance||vac. adv. starts||max. vac. adv.|
|curve||[rpm crankshaft]||[rpm/||degr. crankshaft]||[mmHg]||[mmHg/||degr.]||replaces||remark|
|0||1200||4000||24,0||100||300||10,0||MARELLI S105B||FULVIA 818.000|
|1||1200||4000||24,0||100||300||10,0||MARELLI S105B||FULVIA 818.100|
|2||1000||3200||15,0||100||300||10,0||MARELLI S105C||FULVIA 818.100/130/140/342/303/302/282|
|3||0800||5400||20,0||100||300||10,0||MARELLI S139A||FULVIA 818.540 & var.1016 mot.|
|4||0600||4000||26,0||100||300||10,0||MARELLI||FLAVIA 815.000/200 315.000|
|7||1200||4000||24,0||100||300||10,0||MARELLI S105B||FULVIA 818.000|
|range:||500 – 8000 rpm|
|temperature:||-30 to 100 Celsius|
|coil:||stock or High Energy coil, primary coil NOT below 1,0 ohm|
|dwell:||constant current, fully autom.|
|time-out:||after 1 second current is switched off|
|spark-bal.:||better than 0,5 degr. crankshaft|
|vacuum:||starts at 100 mmHg, ends at 10 degr. @ 300 mmHg|
|max.advance:||45 degr. crankshaft|
|wiring:||red = +6V or +12V, black = ‘-‘ coil|
