123FIAT-TC-4-AV

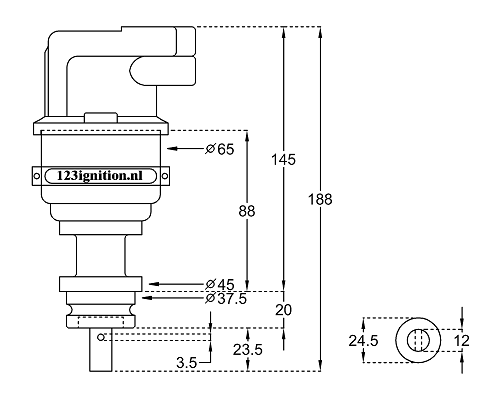

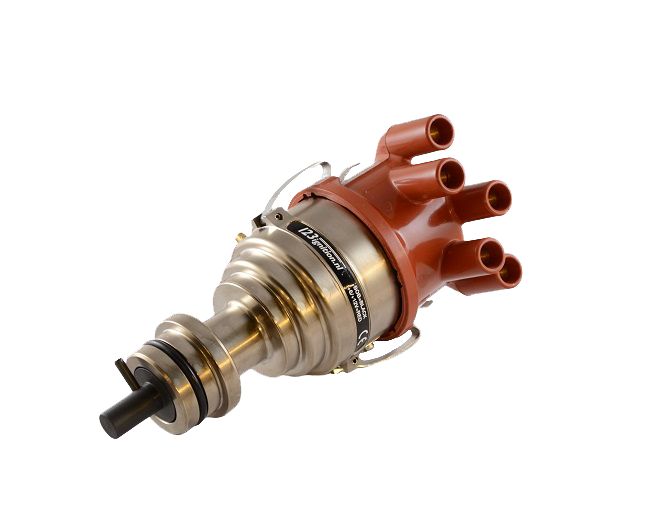

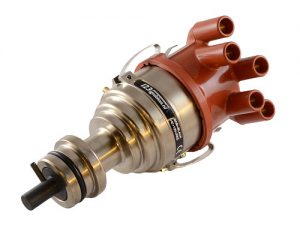

The 123\FIAT-TC-4-A-V is designed to replace the mechanical distributor ( mounted on top of the cylinder-head ) in the popular Fiat twin-cam engines.
Four original Fiat-curves are integrated into this product.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
|---|---|---|---|---|---|---|---|---|
| curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
| 0 | 1000 | 3500 | 36,0 | 100 | 300 | 10,0 | MARELLI S134B | FIAT-124 SPORTMODEL 1608cc |
| 1 | 1000 | 3500 | 31,0 | 100 | 300 | 10,0 | MARELLI S144B | A FIAT-124 SPORTMODEL 1756cc |
| 2 | 1000 | 3500 | 28,0 | 100 | 300 | 10,0 | MARELLI SM807CX | FIAT-124 SPORTMODEL 1995cc |
| 3 | 1000 | 3500 | 24,0 | 100 | 300 | 10,0 | MARELLI AEI200A,0227.100.14 | FIAT-131 RACING 1995cc |
| 4 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | LUCAS | 2000/6,0 |
| 5 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | LUCAS | 2000/8,0 |
| 6 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | LUCAS | 2000/10,0 |
| 7 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | LUCAS | 2000/12,0 |
| 8 | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | LUCAS | 2000/6,5 |
| 9 | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | LUCAS | 2000/9,0 |
| A | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | LUCAS | 2000/11,0 |
| B | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | LUCAS | 2000/13,0 |
| C | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | LUCAS | 2000/7,5 |
| D | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | LUCAS | 2000/10,0 |
| E | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | LUCAS | 2000/12,0 |
| F | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | LUCAS | 2000/14,0 |
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | starts at 100 mmHg, ends at 10 degr. @ 300 mmHg |
| max.advance: | 45 degr. crankshaft |
| wiring: | red = +6V or +12V, black = ‘-‘ coil |
