Description

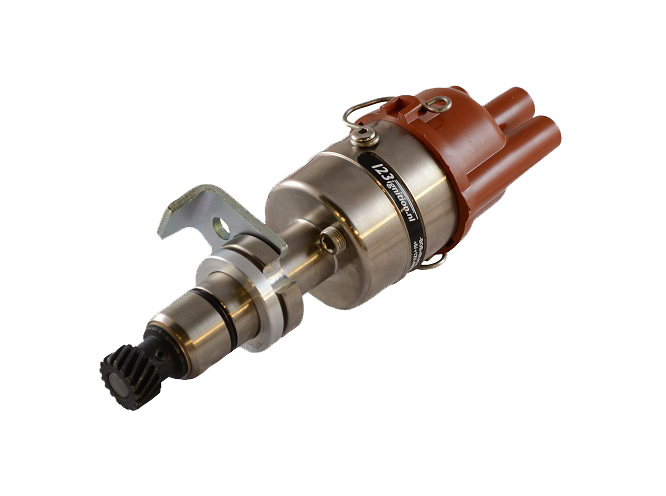

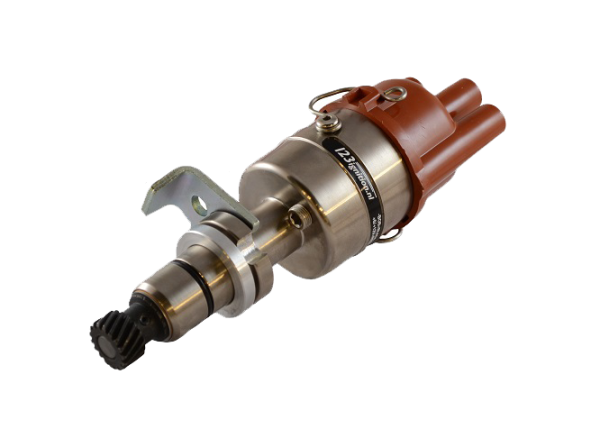

123FIAT-2-R
The 123\FIAT-2-R is designed especially for Fiat500- and Fiat126-engines. With a design similar to the original distributor. No more wear, no more replacement of points and/or condensor EVER again.
The advance is now electronically calculated : set it, and forget it!
The 123\FIAT-2-R is designed to work with a traditional coil, producing a strong and crisp spark, for better starting and economy.
The unit offers a built-in LED for easy static timing.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
|---|---|---|---|---|---|---|---|---|
| curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
| 0 | 1000 | 3000 | 28,0 | – | – | – | From engine nr 4490214 | 16,8 deg. @ 2000 rpm |
| 1 | 1000 | 3000 | 28,0 | – | – | – | As curve 0 incl. idle control | 16,8 deg. @ 2000 rpm |
| 2 | 1000 | 3000 | 28,0 | – | – | – | Up to engine nr 4490214 | 13 deg. @ 2000 rpm |
| 3 | 1000 | 3000 | 28,0 | – | – | – | As curve 2 incl. idle control | 13 deg. @ 2000 rpm |
| 4 | 1000 | 3000 | 26,0 | – | – | – | Tuning curves group 1 | 17 deg. @ 2000 rpm |
| 5 | 1000 | 3000 | 26,0 | – | – | – | Tuning curves group 1 | 19 deg. @ 2000 rpm |
| 6 | 1000 | 3000 | 26,0 | – | – | – | Tuning curves group 1 | 21 deg. @ 2000 rpm |
| 7 | 1000 | 3000 | 28,0 | – | – | – | Tuning curves group 2 | 18 deg. @ 2000 rpm |
| 8 | 1000 | 3000 | 28,0 | – | – | – | Tuning curves group 2 | 20 deg. @ 2000 rpm |
| 9 | 1000 | 3000 | 28,0 | – | – | – | Tuning curves group 2 | 22 deg. @ 2000 rpm |
| A | 1000 | 3000 | 30,0 | – | – | – | Tuning curves group 3 | 19 deg. @ 2000 rpm |
| B | 1000 | 3000 | 30,0 | – | – | – | Tuning curves group 3 | 21 deg. @ 2000 rpm |
| C | 1000 | 3000 | 30,0 | – | – | – | Tuning curves group 3 | 23 deg. @ 2000 rpm |
| D | 1000 | 3000 | 32,0 | – | – | – | Tuning curves group 4 | 20 deg. @ 2000 rpm |
| E | 1000 | 3000 | 32,0 | – | – | – | Tuning curves group 4 | 22 deg. @ 2000 rpm |
| F | 1000 | 3000 | 32,0 | – | – | – | Tuning curves group 4 | 24 deg. @ 2000 rpm |
| SPECIFICATIONS | |
|---|---|
| cylinders: | 2 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 – 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| max.advance: | 45 degr. crankshaft |
| wiring: | red = +6V or +12V, black = ‘-‘ coil |
123ignition has been active in the field of classic cars for more than 15 years and through this became a respected brand. The company started in 1992 and from 2001 fully focused on electronic ignition systems. The first prototype ignition was born out of passion a couple of years before. A project was started to provide an electronic ignition for a Citroen 2CV. This turned out to be such a great success that the project was turned into a product. Meanwhile, the assortment expanded more and more, and we can now offer a suitable product for many classic cars.
