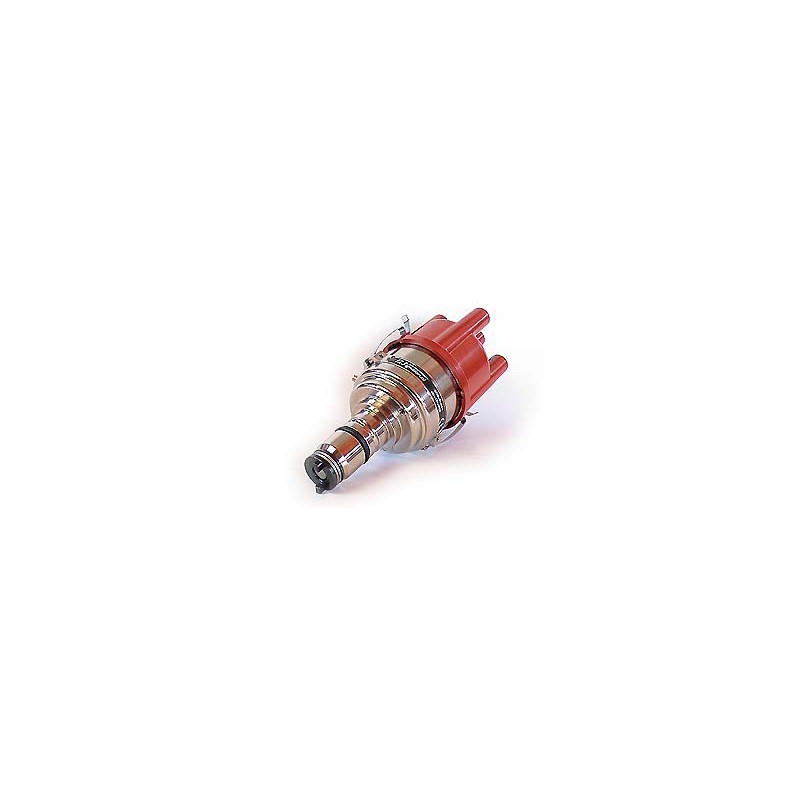

The 123 Alfa 4-R
The 123ALFA-4-R is designed for the Giulia Nova, Spider & Bertone 2000, the Duetto and many others. There are also a couple of special curves, as used by well respected tuners.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
voltage: 4,0-15,0 Volts
range: 500 – 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = ‘-‘ coil
